What is NeoGoggles?
NeoGoggles is a pair of glasses designed by Omnixie Electronics. It was released in October 2023 at the Bay Area Maker Faire.

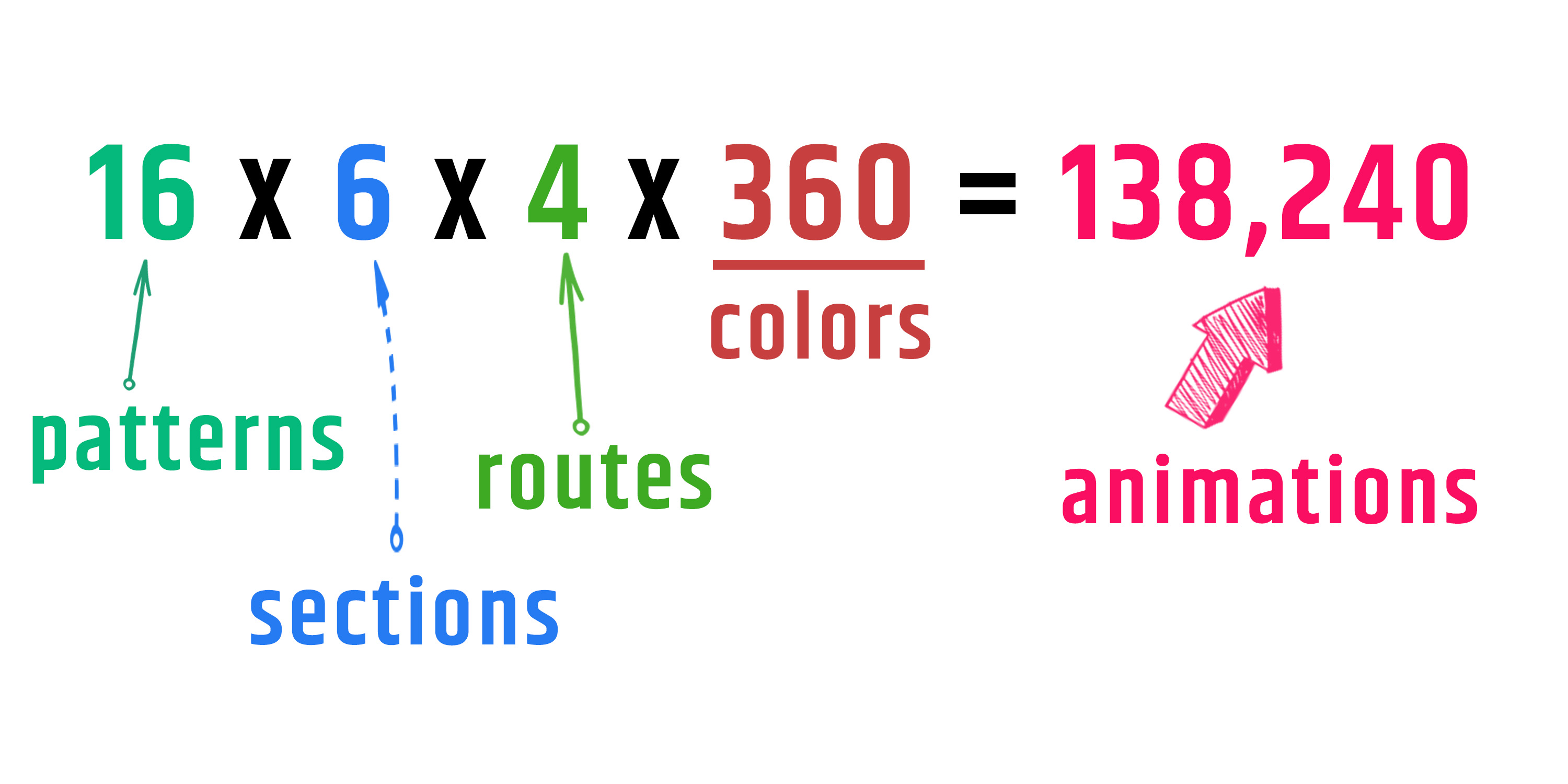

NeoGoggles have 2 rings of RGB LEDs featuring numorous animations, controlled by 5 knobs and 1 button on the front. Simply turn the knobs to tube the LED patterns/colors/brightness/speed to find the animation that match your style.
Feature Highlights
- Tons of Animations Customized by Knobs/Button to Suite YOUR STYLE
- 8 Speeds x 32 Brightness Levels
- Hours of fun on a full charge
- Rechargeable via USB Type C to Type A cable.
- Sound Reactive mode: LED colors will change with your music. (The Pattern knob must be turned all the way counter-clockwise.)
How to Use
Power
- Slide UP the Power Switch to turn it on. Slide DOWN the Power Switch to turn it off.
- It takes around 1-2 hours to charge it from 0% to 100%.
Controlling LED Animations
5 Blue Knobs
Section
Color
Brightness
Speed
Pattern
Charging
- Turn the power switch off for faster charging.
- Use a USB-A to USB-C cable to charge the product.
- When charging, the red Charging Indicator LED will turn on, which will turn off after fully charged.
- It does NOT support USB-C to USB-C cable for charging (yet).
Check Battery Level
- Press & Hold the "Battery Check" botton will show the battery voltage with LEDs.
- For example, if 3 LEDs are red, 2 LEDs are green and 1 LED is blue, then the battery voltage is 3.21 volt.
- Battery's voltage is around 4.2V when fully charged, and about 3.7V when out of battery.
